ReFORM - Your 300% Solution to Formwork
ZEGO ReFORM Strippable and Reusable High Speed Forms
Comes in a stillage holding 150 panels = 50m2/stillage
Reusable Fire Form Panels (2x25m2=25m2 of Forms)
1143mm x300mm panels with 6 slots 70mm and 6 slot 58mm x 5mm wide along the long sides
Used with ZEGO Interconnects approx 18/m2 and 2.9 panels per m2 each side Available in different thicknesses
Typical Usage
- Basement car parks when you do not require added expense of rendering
- Internal walls ideal for sound deadening between rooms
- Pools
- Water tanks
- Planter boxes
- Handrails
- Fences
- Large retaining walls
- Ventilation shafts
- Electrical cupboards
- Lift shafts
- etc
Benefits of ZEGO
- High Speed Assembly
- High Speed Stripping
- 300%* less components
- 300%* less materials to handle horizontally and vertically between floor levels
- 300%* less materials to transport to and from your site
- 300%* less storage space onsite and off site
- Simple estimating
- Simple scheduling
- 300mm Effective height is ideal for 2100mm door head heights
- Positive interlocking interlock alleviating movement during assembly and the concrete pour

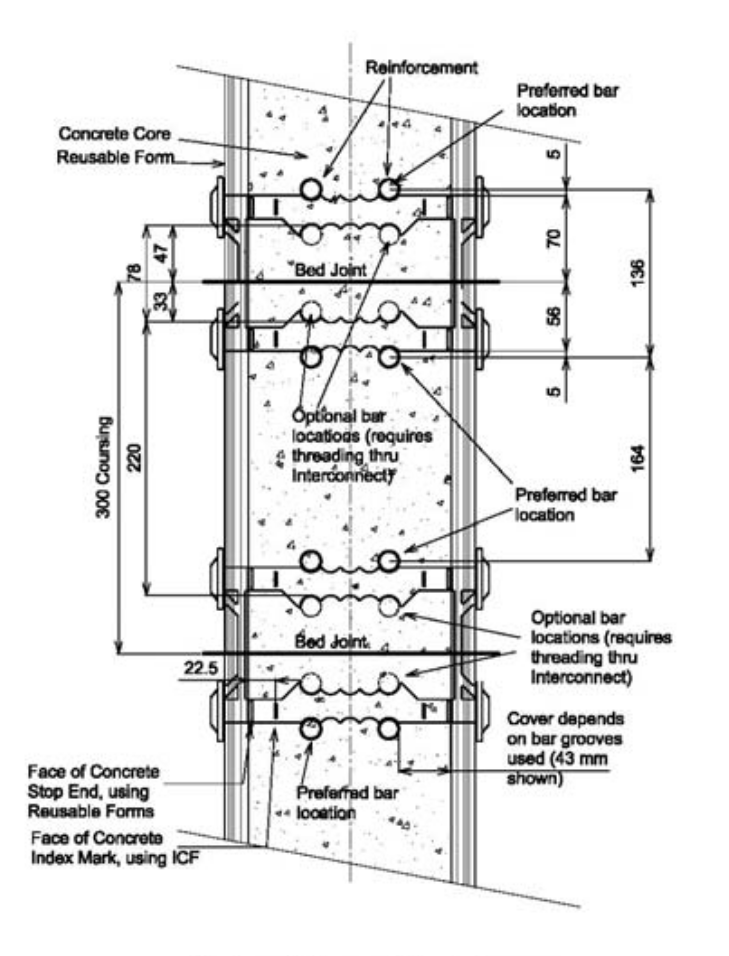

- Reinforcement support ribs allowing positioning and full encapsulation of the reinforcement steel
- 2400mm window head heights
- 2400mm, 2700mm, 3000mm etc ceiling heights
- Can be cut in to the mm with conventional tools
- Easier material handling
- Patented Wall Brace Scaffold Alignment system to hold wall plumb and provide platform to pour concrete from
Effective size
- Cast concrete 80mm - 100mm - 120mm - 150mm - 175mm - 200mm - 250mm - 300mm Wide
- 300mm High
- 1143mm Long
Insulating Thickness
- N/A concrete only as the ReFORM is removed and reused. Provides Thermal Mass only
- May be used with Fire Form Insulating panel that provided approx. R1.5/50mm + Thermal Mass
Concrete and Volume
As a Retaining Wall
Australian Standards Compliance
- AS3600 Concrete Structures
- AS3610 Formwork for Concrete
* based on approximates and in most cases well over
|
